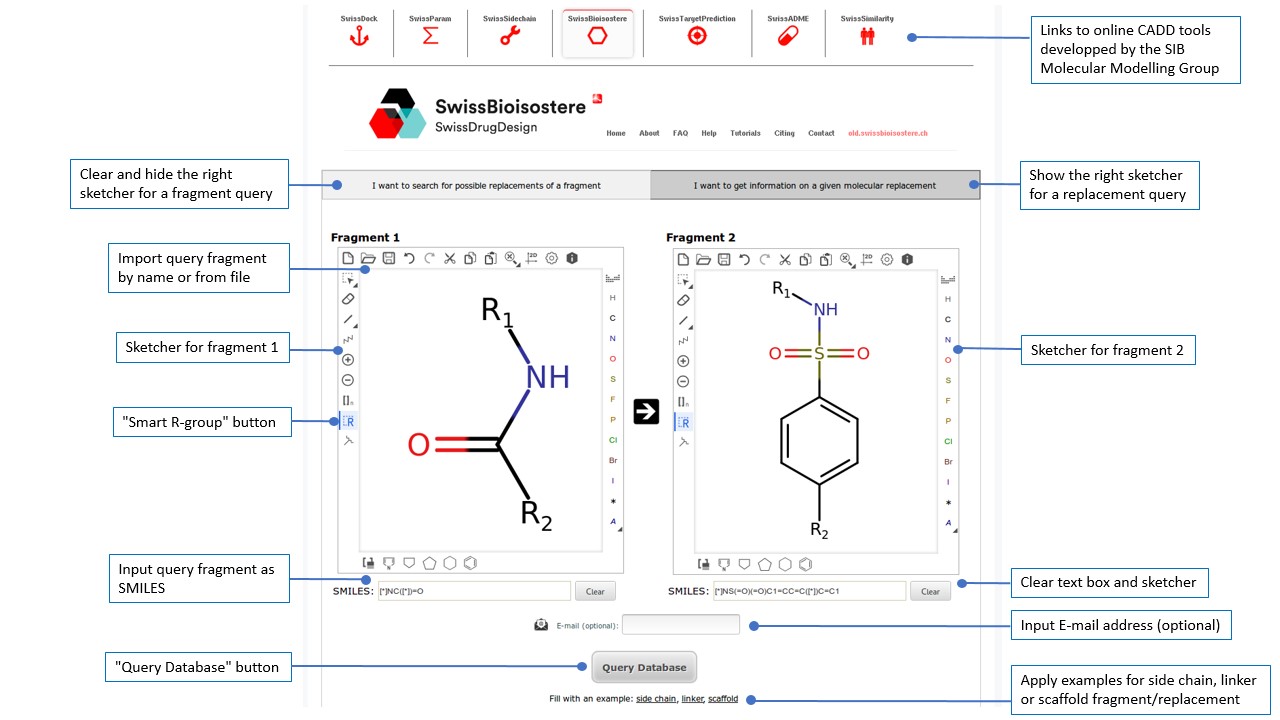

Input

Two types of queries are possible :

• The tab I want to search for possible replacements for a fragment
  ( e.g. all replacing fragments for a morpholine ring )

  Input the fragment in the sketcher with one, two or three attachment points tagged R₁, R₂ and R₃ using the 'Smart R-group' button. Then click 'Query Database'.

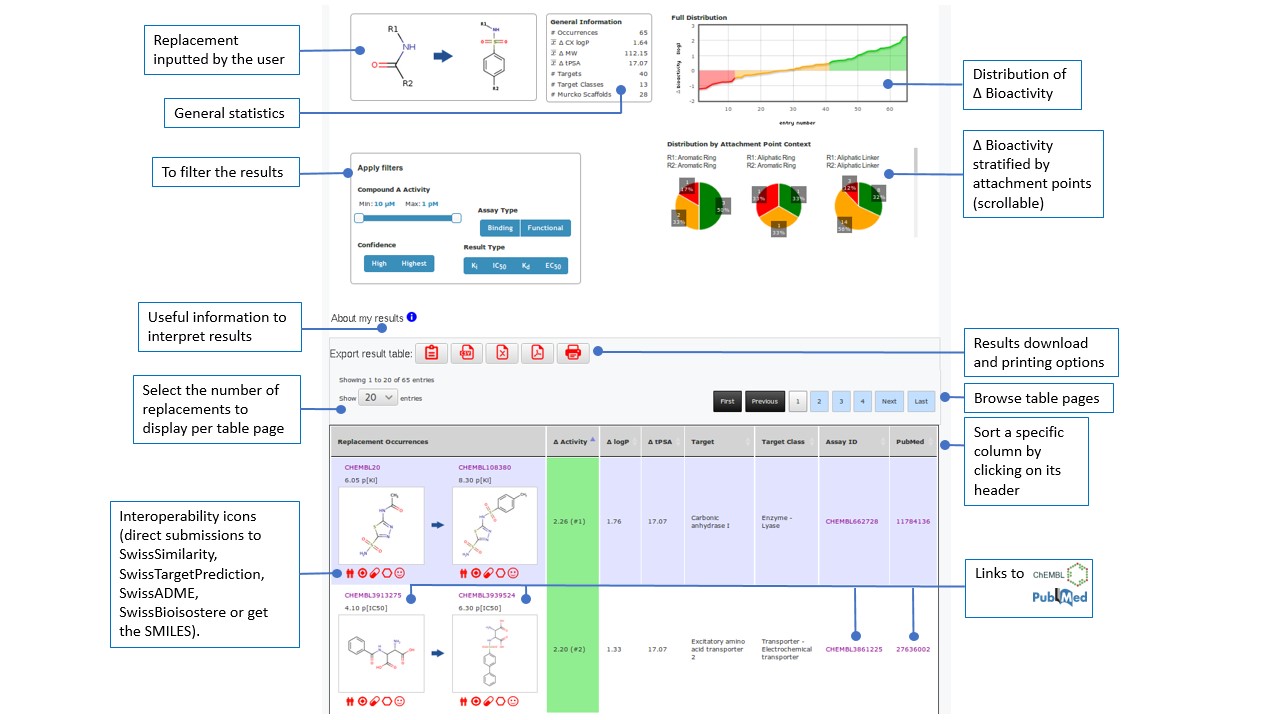

• The tab I want to get information on a given molecular replacement
  ( e.g. analysis of replacing morpholine by 3-pyridine )

  Input the fragment to be replaced in the left-hand sketcher and the replacing fragment on the right-hand sketcher. Add one, two or three attachement points (R1, R2, R3) on the left-hand fragment, and the corresponding ones on the right-hand fragment with the 'Smart R-group' buttons. Then click 'Query Database'.

N.B. Both sketchers are identical; every feature available for one sketcher is also present in the other one.

Examples can be found here.

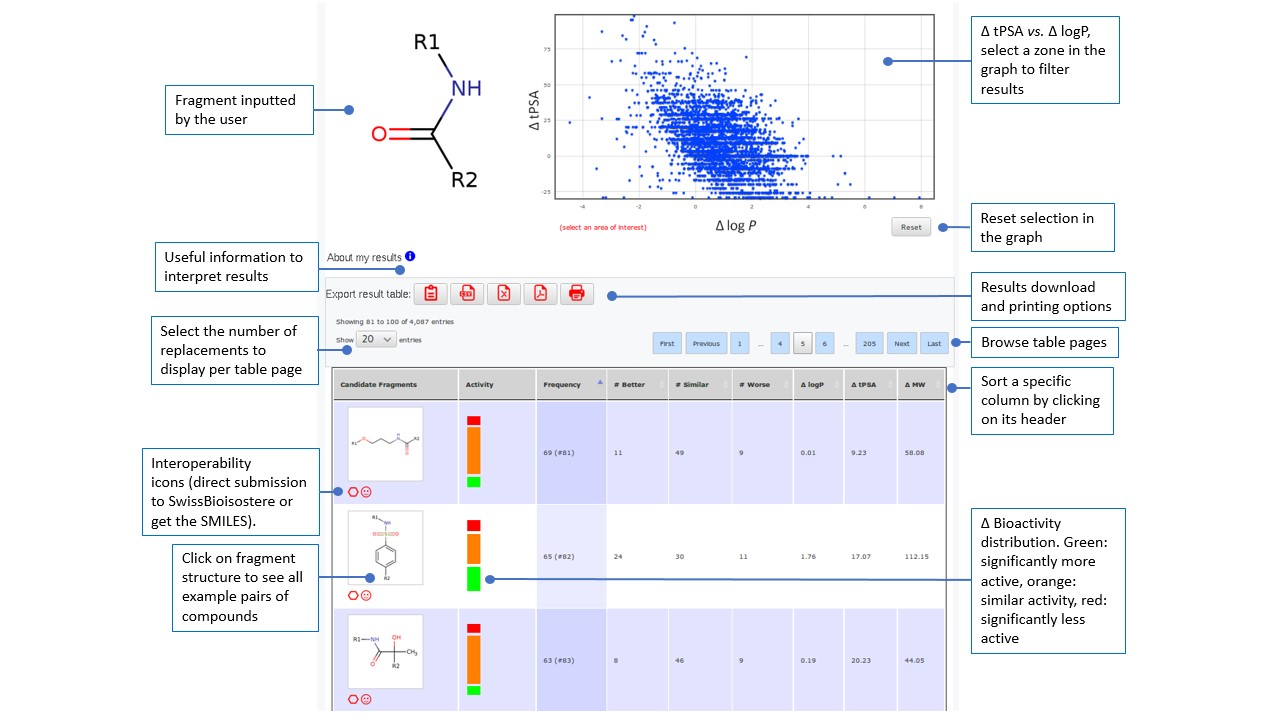

Candidate fragments output
